ENERGY INSTITUTE OF HIGHER EDUCATION OF SAVEH


EIHE was founded in the year 2010. Although very young yet, still the institute tries to achieve all its goals by the help of experienced scientific board and up to date and advanced workshops and laboratories. Our new building is well on its way to welcome students for the coming semester. ARMANIK was responsible for the engineering, supply and commissioning of the rooftop HVAC  systems' as follows :



New Educational Building





Challenges

Technical challenges (among other contractors)

Vulnerability requirements for certain systems

Sound level restrictions

Incompatibility of new equipment and control system with some existing equipment

Time schedule limit

HSE regulations





Scope of work



ARMANIK’s scope of work for the above project comprised:



Pre-contract

Co-writing technical specifications and implementing and calculating of load the HVAC system within the building design,site visit and general arrengement.



Post-contract

Complete design and engineering of the HVAC systems, followed by delivery, installation, commissioning, FAT, HAT, SAT activities.



System and process was constructed by EIEH engineering staff  in MARKAZI province of Iran .



Scope of supply

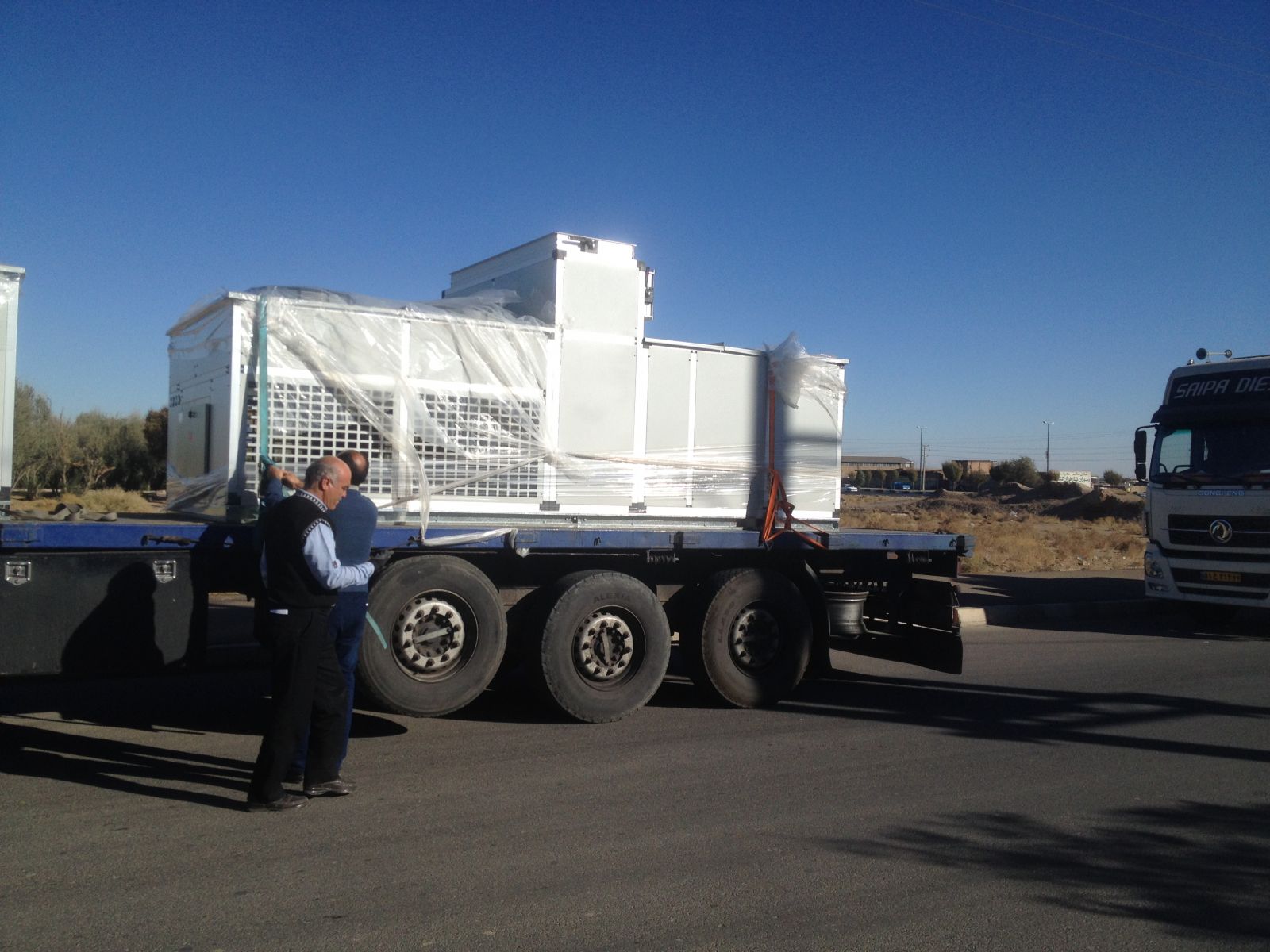

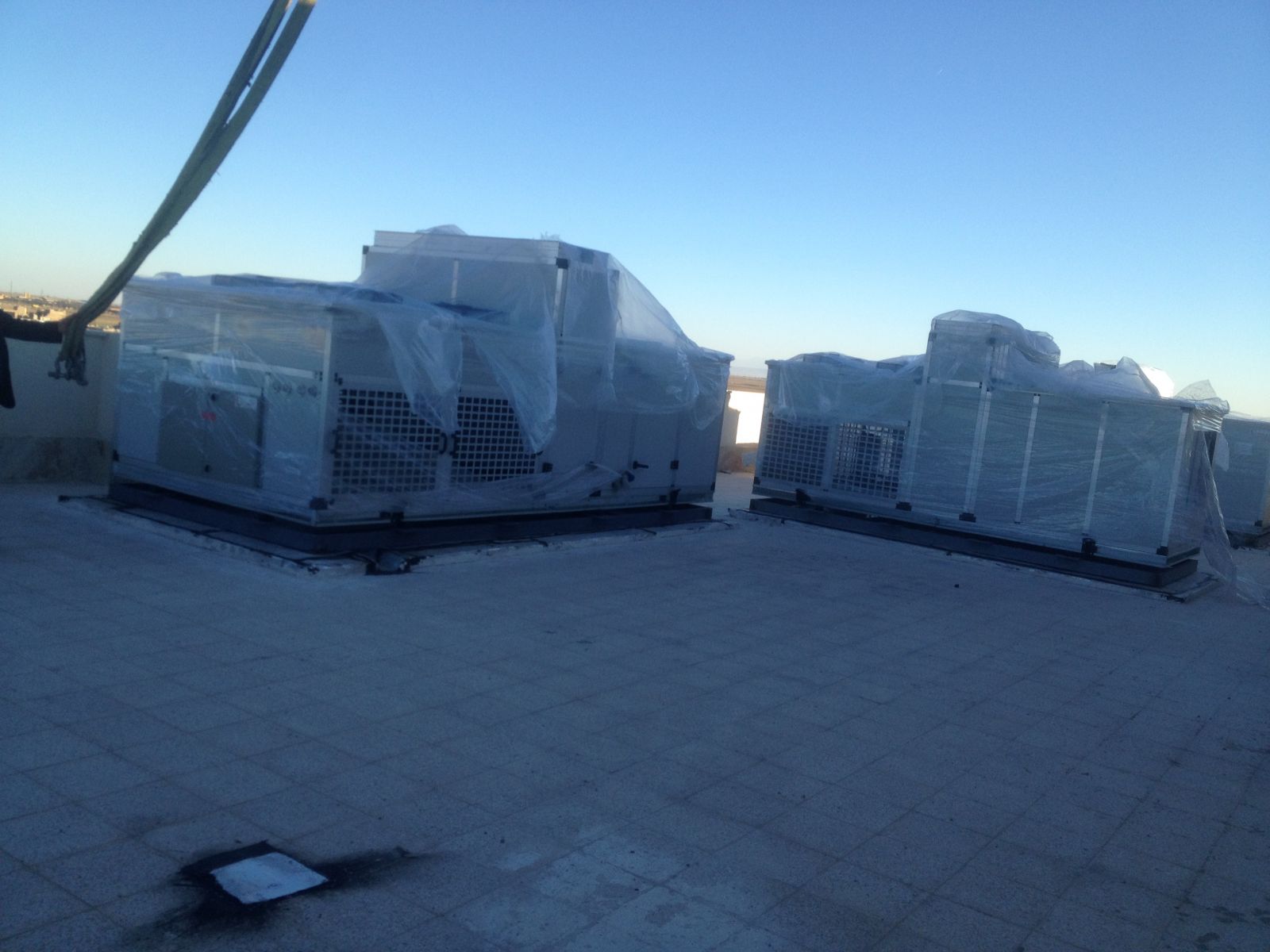

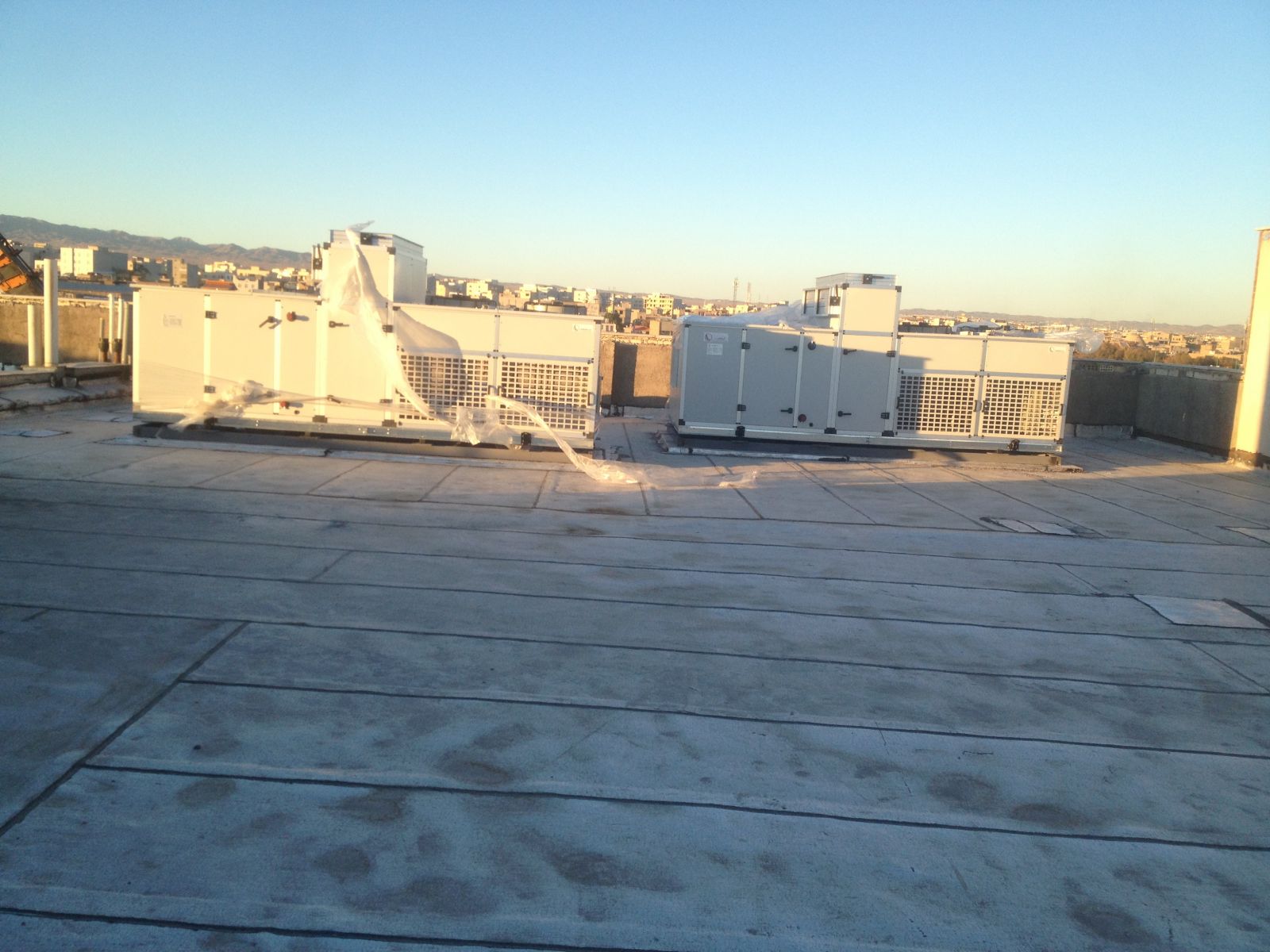

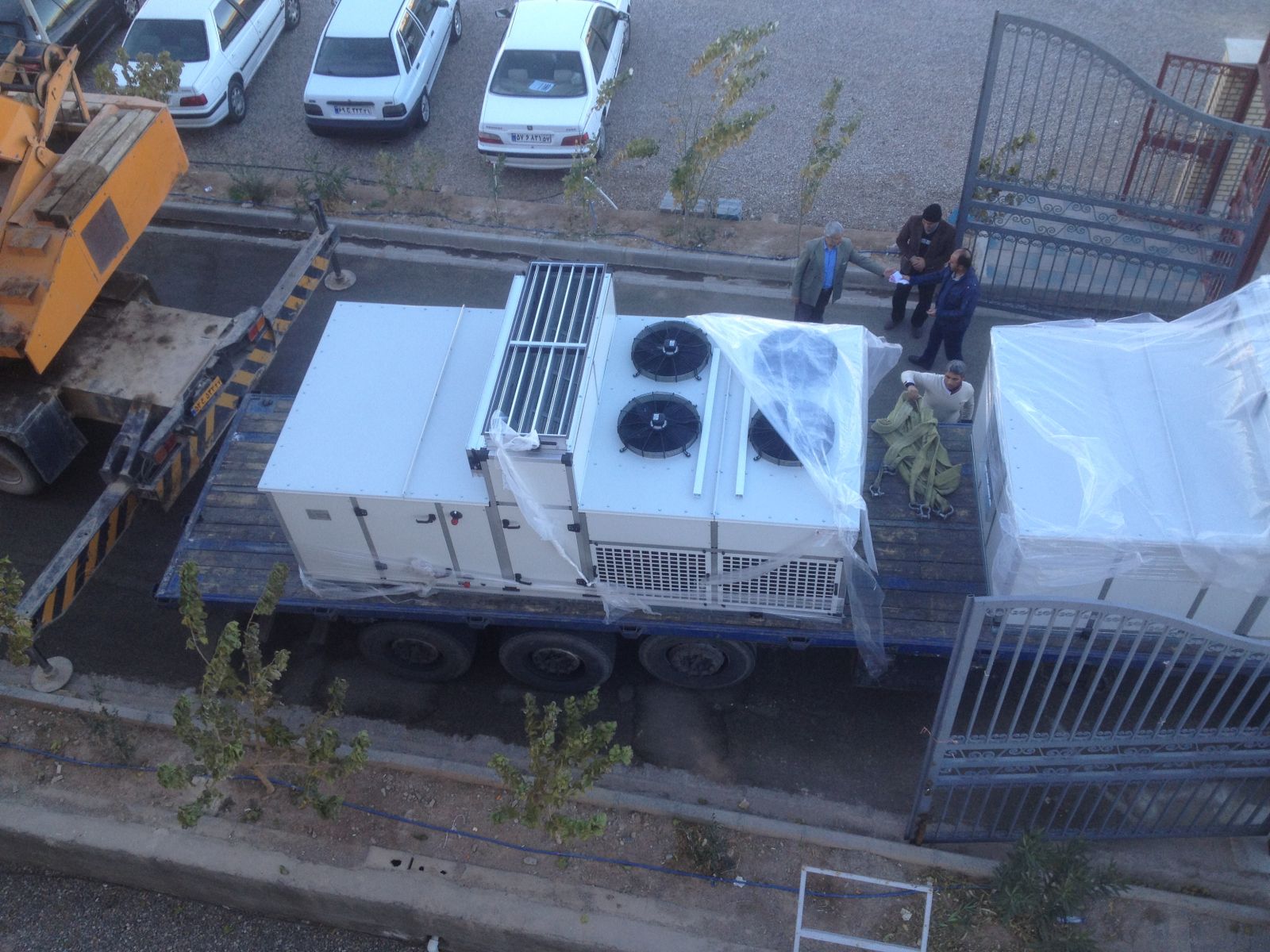

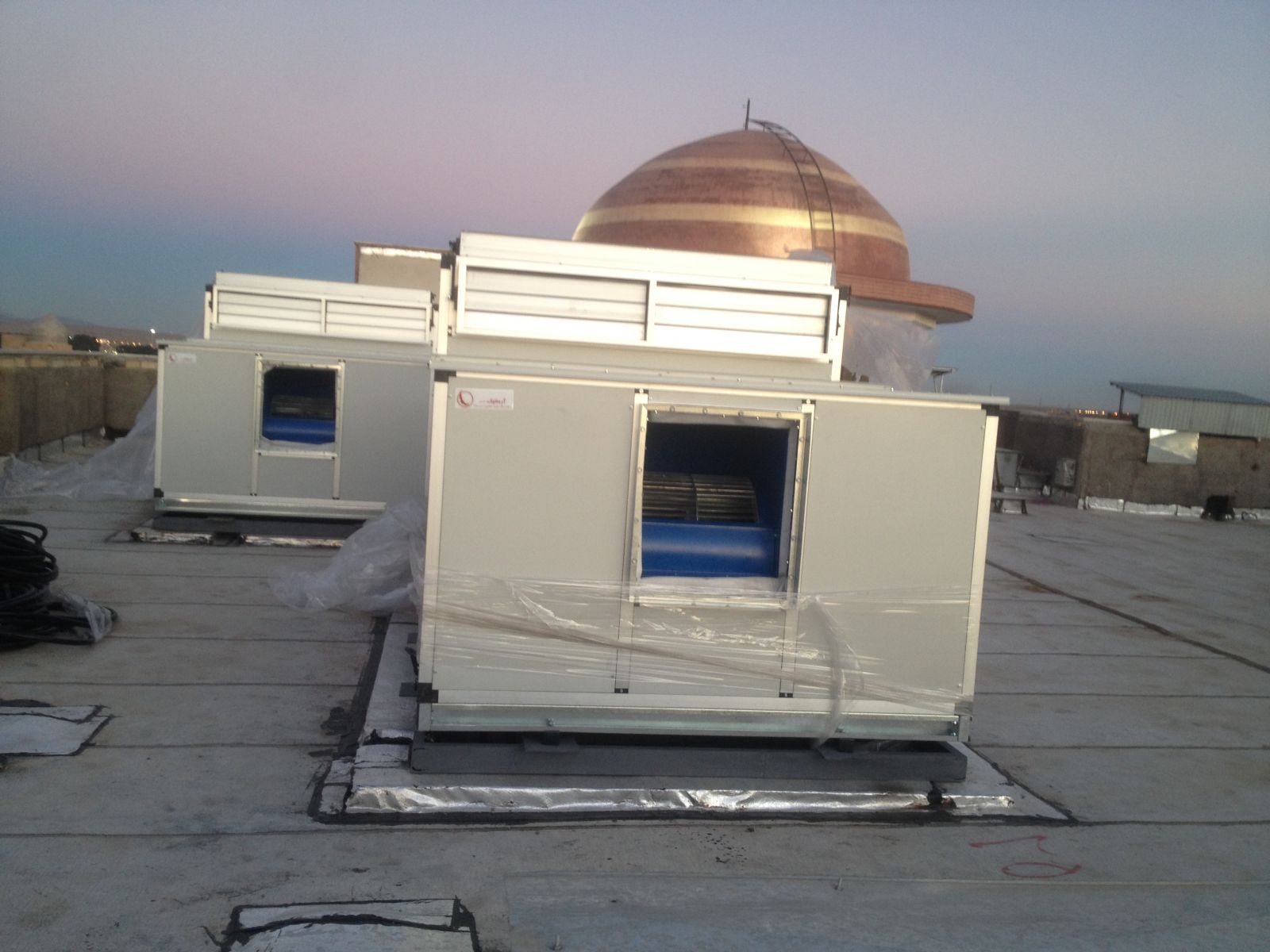

3 x Air cooled rooftop packaged unit  (total  cooling capacity 317 kw) with control panel.

3 x Air cooled rooftop packaged unit  (total  cooling capacity 211kw) with control panel.



Guaranty Period : 2 years after commissioning
